ASUS TUF Gaming B760M-PLUS WiFi II Intel B760 LGA 1700 mATX Placa Base Negra DDR5 WiFi 6E

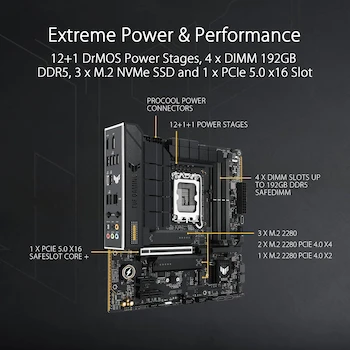

The ASUS TUF Gaming B760M-PLUS WiFi II motherboard integrates the core strengths of the latest Intel processors with features tailored for gaming and proven durability, built around military-grade components, an enhanced power delivery system, and a full cooling array to deliver stable performance during extended gaming sessions. Its design features an embossed nameplate and geometric patterns that echo the reliability of the TUF Gaming series, while the platform supports advanced AI PC applications through robust power and connectivity. The motherboard employs a 12(50A)+1(60A)+1 power stage configuration with enlarged VRM heatsinks to ensure efficient power handling for Intel Core 14th and 13th Gen processors on the LGA1700 socket, complemented by a six-layer PCB that dissipates heat effectively for greater overclocking potential. Durability is reinforced with TUF chokes and capacitors offering extended temperature tolerance and lifespan, Digi+ VRM for precise voltage regulation, and 8+8 Pin ProCool connectors that minimize impedance and prevent hotspots.

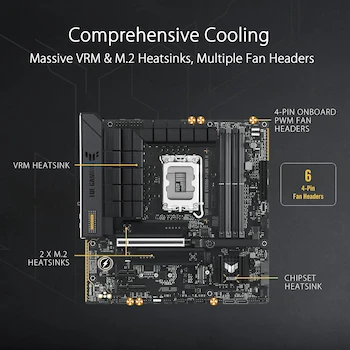

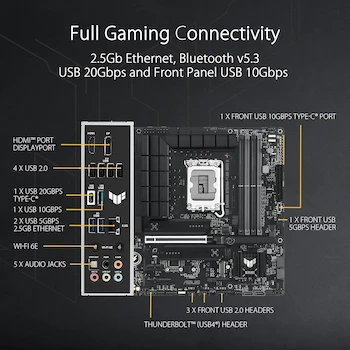

Cooling is comprehensive, including oversized VRM heatsinks, optimized M.2 heatsinks for two PCIe 4.0 slots supporting up to 64 Gbps data transfers, and fan controls via Fan Xpert 2+ that allow multi-temperature monitoring, pump headers, and smart protections for PWM or DC fans. Connectivity options are extensive, featuring PCIe 5.0 for graphics cards with SafeSlot Core+ reinforcement, DDR5 memory support enhanced by ASUS Enhanced Memory Profile II for optimized performance up to 6600MT/s in overclocked scenarios, USB 20Gbps Type-C on the rear panel and a front-panel USB 10Gbps Type-C header, 2.5 Gb Ethernet with TUF LANGuard for surge protection, WiFi 6E via Q-Antenna for easy setup, and Thunderbolt 4 header support for up to 40 Gbps speeds.

Gaming enhancements include Two-Way AI Noise Cancelation to filter ambient sounds for clear communication, Realtek 7.1-channel audio with DTS processing and premium shielding for immersive sound, and three addressable Gen 2 RGB headers compatible with up to 500 LEDs for synchronized lighting. Ease of use is emphasized through tools like PCIe Q-Release for simple graphics card removal, M.2 Q-Latch for tool-free SSD installation, ESD Guards and a stainless steel back I/O panel for longevity, and UEFI BIOS with intuitive modes, search functions, and graphical fan control, alongside Armoury Crate software for unified RGB, fan management, and system tuning.
