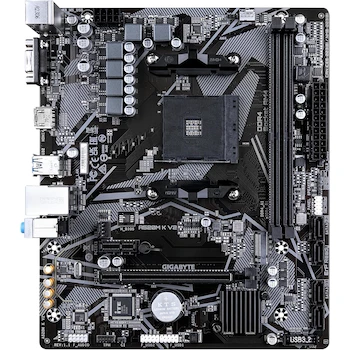

GIGABYTE A520M K V2 Rev. 1.0 Micro ATX Motherboard

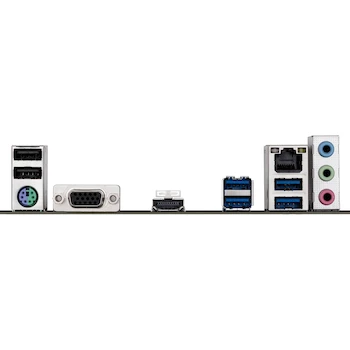

The GIGABYTE A520M K V2 motherboard is engineered for AMD Ryzen processors, supporting the Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 Series, and Ryzen 3000 G-Series, ensuring compatibility with a range of high-performance CPUs through its AMD A520 chipset and AM4 socket. It features dual channel ECC and non-ECC unbuffered DDR4 memory across two DIMM slots, allowing for up to 64GB with overclocking capabilities reaching 5100MHz, providing flexible and reliable memory support. Storage and connectivity are enhanced by a PCIe Gen3 x4 M.2 connector that supports both PCIe NVMe and SATA modes, alongside SATA3 ports for additional storage options. The motherboard includes a GbE LAN with bandwidth management for efficient network performance, and rear I/O options comprise HDMI and D-sub ports for multi-display support with resolutions up to 4K at 60Hz on HDMI and 1920x1200 at 60Hz on D-Sub, along with four USB 3.2 Gen1 ports and two USB 2.0 ports. Audio is delivered through an 8-channel HD Audio CODEC paired with high-end audio capacitors to ensure quality sound output. Cooling is managed by Smart Fan 5, which utilizes multiple temperature sensors and hybrid fan headers with FAN STOP functionality to optimize thermal performance. The design incorporates Ultra Durable elements, such as all solid capacitors and an Anti-Sulfur Resistors Design to protect against environmental sulfur compounds that could cause resistor failure, thereby enhancing long-term reliability. Measuring 23.3cm by 19.8cm, this Micro ATX board offers a compact yet capable platform for building efficient systems.
