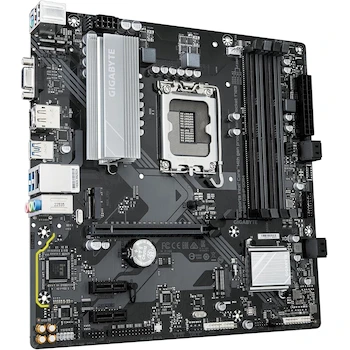

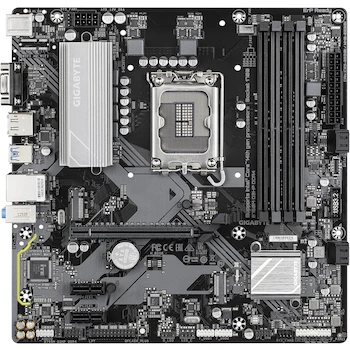

GIGABYTE B760M D3HP DDR4 Placa Base Motherboard Micro ATX Intel B760 LGA 1700 Socket Dual Channel DDR4 4x DIMMs

The GIGABYTE B760M D3HP DDR4 motherboard is engineered to support Intel Core 14th, 13th, and 12th generation processors, delivering robust compatibility with the latest CPU architectures for modern computing needs. Its design incorporates a micro-ATX form factor with a full PCIe 4.0-ready PCB, ensuring high-speed data pathways and enhanced system scalability. The board features an 8-solid-pin CPU power connector and a 4+1+1 hybrid digital VRM solution, utilizing premium chokes and capacitors along with low RDS(on) MOSFETs to provide stable power delivery and optimal performance under demanding loads. This VRM design supports unparalleled performance by efficiently handling the power requirements of high-end processors, contributing to overall system stability and hardware scalability.

In terms of memory, the motherboard employs a dual-channel DDR4 architecture with support for four DIMMs and XMP profiles, enabling speeds up to 5333MHz and beyond when paired with compatible XMP-capable modules. This setup allows for expanded memory capacity and improved data throughput, enhancing multitasking and application performance. Storage capabilities are advanced through two PCIe 4.0 x4 M.2 connectors, facilitating next-generation ultra-fast storage solutions for quick data access and reduced load times in various applications.

Connectivity options on the GIGABYTE B760M D3HP DDR4 are extensive and versatile, including a front USB 3.2 Gen1 Type-C port for rapid data transfer, alongside DisplayPort, HDMI, and D-Sub outputs for comprehensive display support. The board also includes Gigabit Ethernet (GbE LAN) for reliable networking, four SATA 3 ports for additional storage expansion, and a single PCIe 4.0 x16 slot with EZ-Latch for simplified graphics card installation and removal. Audio performance is bolstered by an 8-channel high-definition setup featuring Audio Noise Guard technology and high-end audio capacitors, ensuring clear and immersive sound reproduction while minimizing interference.

Cooling and maintenance features enhance the motherboard's usability, with Smart Fan 6 technology incorporating multiple temperature sensors, hybrid fan headers supporting PWM and DC fans as well as water cooling pumps with up to 24W power and over-current protection, and FAN STOP functionality to halt fan operation below specified temperatures for quieter idle states. The BIOS update process is streamlined via Q-Flash Plus, allowing updates without a installed CPU, memory, or graphics card by simply connecting power, inserting a formatted USB drive, and activating the onboard button. RGB Fusion support includes one addressable LED header and one RGB LED header for customizable lighting effects, adding aesthetic personalization to the build.

Overall, the GIGABYTE B760M D3HP DDR4 motherboard combines durable construction with innovative tools like the user-centered UC BIOS, which offers an intuitive interface, quick access presets, and PerfDrive technology for optimizing performance, power, and temperature through modes such as Max Turbo, Optimization, Spec Enhance, and E-Core Disable. This ensures a balanced and efficient computing experience tailored for gaming and high-performance tasks.
